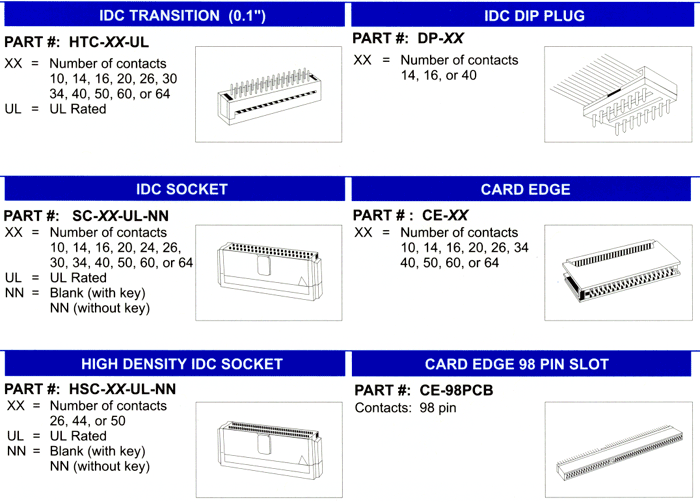

IDC Connectors |
|
|
|
IDC Connectors |
|
|
| General Specifications | ||||
| Electrical Specifications | Materials | |||
| Current Rating: | 1 Amp | Shell Plating: | Gold over Nickel | |
| Dielectric Withstanding: | AC 500V 1 Min | Contact: | Phosphor Bronze | |
| Voltage Rating: | AC 250V | Insulator: | PBT (UL 94V-0 Rated) | |
| Insulation Resistance: | 1000 Megaohms | Operating Temperature: | -55°C to +105°C | |
| Contact Resistance: | 30 Milliohms Max | |||
