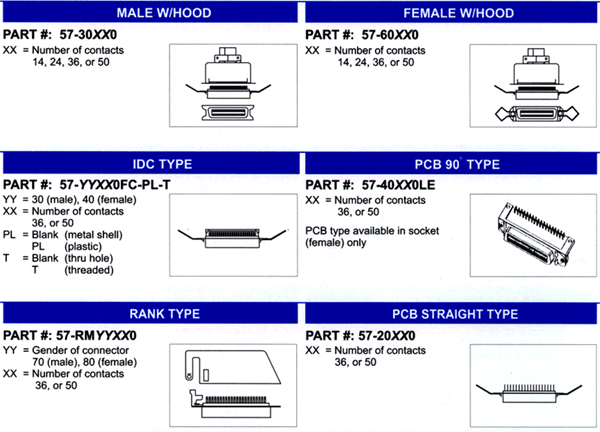

Centronic 57-Ribbon Connectors |
||
|
|
||
| General Specifications | ||||
| Electrical Specifications | Materials | |||
| Contact Current Rating: | 1~7.5 Amperes | Shell: | Nickel, Tin, or Zinc Plated | |
| Dielectric Withstanding: | AC 600~1250V r.m.s. | Contact: | Phosphor Bronze | |
| Insulation Resistance: | 1000-5000 Megaohms min. at DC 500V | Insulator: | Glass Polyamide Filled (UL 94V-0 Rated) | |
| Contact Resistance: | 5~15 Milliohms Maximum | Overmold: | PBT (UL 94V-0 Rated) | |
| Voltage Rating: | 300V at 50 Hz | Operating Temperature: | -40°C to +120°C | |
